Available Replacement parts
Units with S/N above 10,000
- Digital Receiver PCB
- Controls mic click counting, relays, and timer functions.
- Adjustable shut off timer from 15 minutes to 1 hour with dip switch settings.
- Drop-in replacement for all previous receiver boards. (11-0155)
- Comes preprogrammed in selected frequency from 118mhz to 136mhz
- Relay Board for all unit's S/N 10,000 and up
- Available in one, two, and three output configurations.
- must specify unit model when ordering to get the correct configuration.
- Complete main chassis with installed interface PCB.
- Used in all unit with S/N 10,000 and up
- Available in one two and three output configurations.
- Must specify unit model when ordering to get the correct configuration.
Units with S/N's from 8,000 to 9,999
- Digital Receiver PCB
- Drop-in replacement for all previous receiver boards. (11-0155)
- Comes preprogrammed in selected frequency from 118mhz to 136mhz
- Power supply for all units below S/N 10,000
- Must specify frequency, contains crystal and circuitry for the test button feature.
- Decoder board for the RC-1T5A units from S/N 8,000 - 9,999
- Controls mic click counting and relays.
- Timer control board for all unit from S/N 8,000 to 9,999
- Controls the automatic shut off
- Adjustable from 15 minutes to 1 hour with dip switch settings
- Decoder Board for RC-1T4A and RC-1T2A
- Controls mic click counting and relays.
- Must specify when ordering if using for RC-1T4A or RC-1T2A
- Relay Board for all units from S/N 8,000 to 9,999
- Available in one, two, and three output configurations.
- must specify unit model when ordering to get the correct configuration.
Units with S/N's below 8,000
- Digital Receiver PCB
- Drop-in replacement for all previous receiver boards. (11-0155)
- Comes preprogrammed in selected frequency from 118mhz to 136mhz
- Power supply for all units below S/N 10,000
- Must specify frequency, contains crystal and circuitry for the test button feature.
- Decoder PCB for all units with S/N's below 8,000
- Controls mic click counting and relays.
- Must specify unit model number when ordering to receive the correct configuration.
- Timer Control Board for all unit with S/N below 8,000
- Pre-set 15-minute timeout.
Chassis Cap Kit
29.95
- Replacement Chassis mounted Capacitor kit.
- Requires chassis removal and soldering to install
Accessories Common to all Units

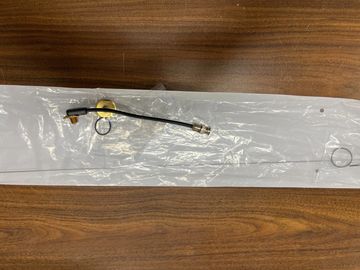

Whip Antenna Kit
$150
- Whip Antenna Kit
- Comes with whip antenna and 6" jumper cable with installed BNC to go from chassis to the top on enclosure.

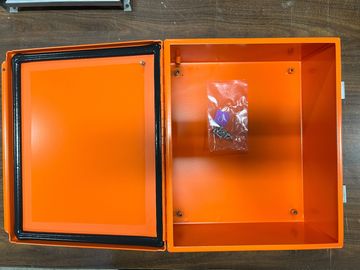

- Standard Enclosure
- Enclosure that ships with all complete unit orders.
- Comes pre-drilled with a 3/4" hole in bottom for wiring and hole in the top for selected antenna set up.
- Antenna hole section is made at check-out.
- Also available non drilled.
- Stainless steel Enclosure
- Upgraded weather and rust resistant enclosure
- Comes pre-drilled with a 3/4" hole in bottom for wiring and hole in the top for selected antenna set up.
- Antenna hole section is made at check-out.
- Also available non drilled.
- Remote Antenna Kit
- Come with UHF Air Vertical Base Antenna, Tuned to 118-137Mhz, 50Ft of RG58 Cable with a preinstalled BNC Connector and a N Connector.
- N Connector is not installed on cable.
- Also available with 100ft of Mini8 Cable for longer runs.
